HTS-SQUID Magnetometer
High Temperature Superconducting Quantum Interference Device
7 patents for designing SQUID sensor device

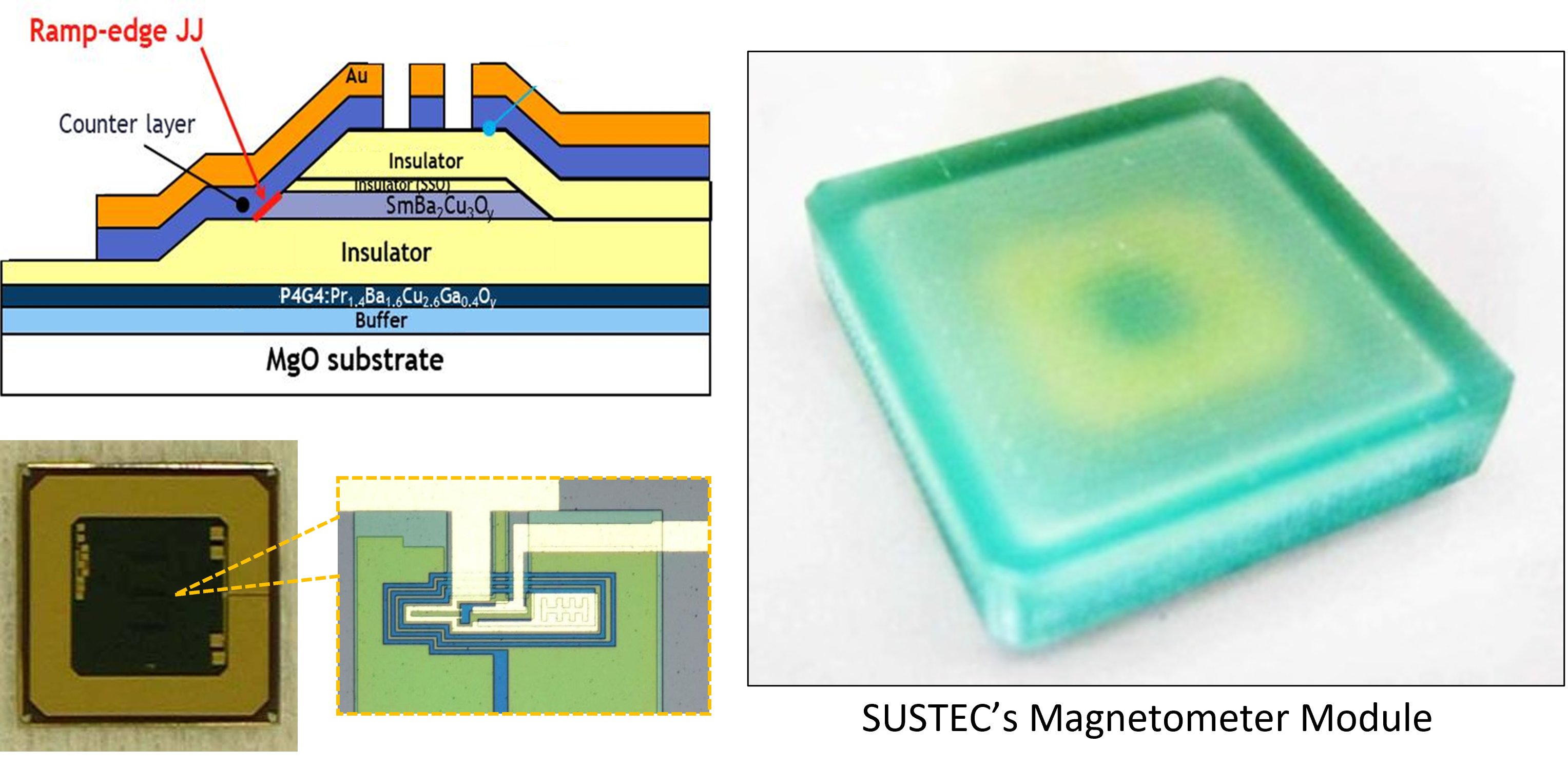

- Patented sensor design utilizing a multilayer structure including two High Temperature Superconducting layers and Josephson Junctions with "Ramp-edge" structure.
- This methodology is based on our unique oxide integrated circuit fabrication process developed by a long history of extensive work in the Japanese national project even since 80-90th. Only-one fabrication technology in the world.
Super Sensitive SQUID Magnetometer

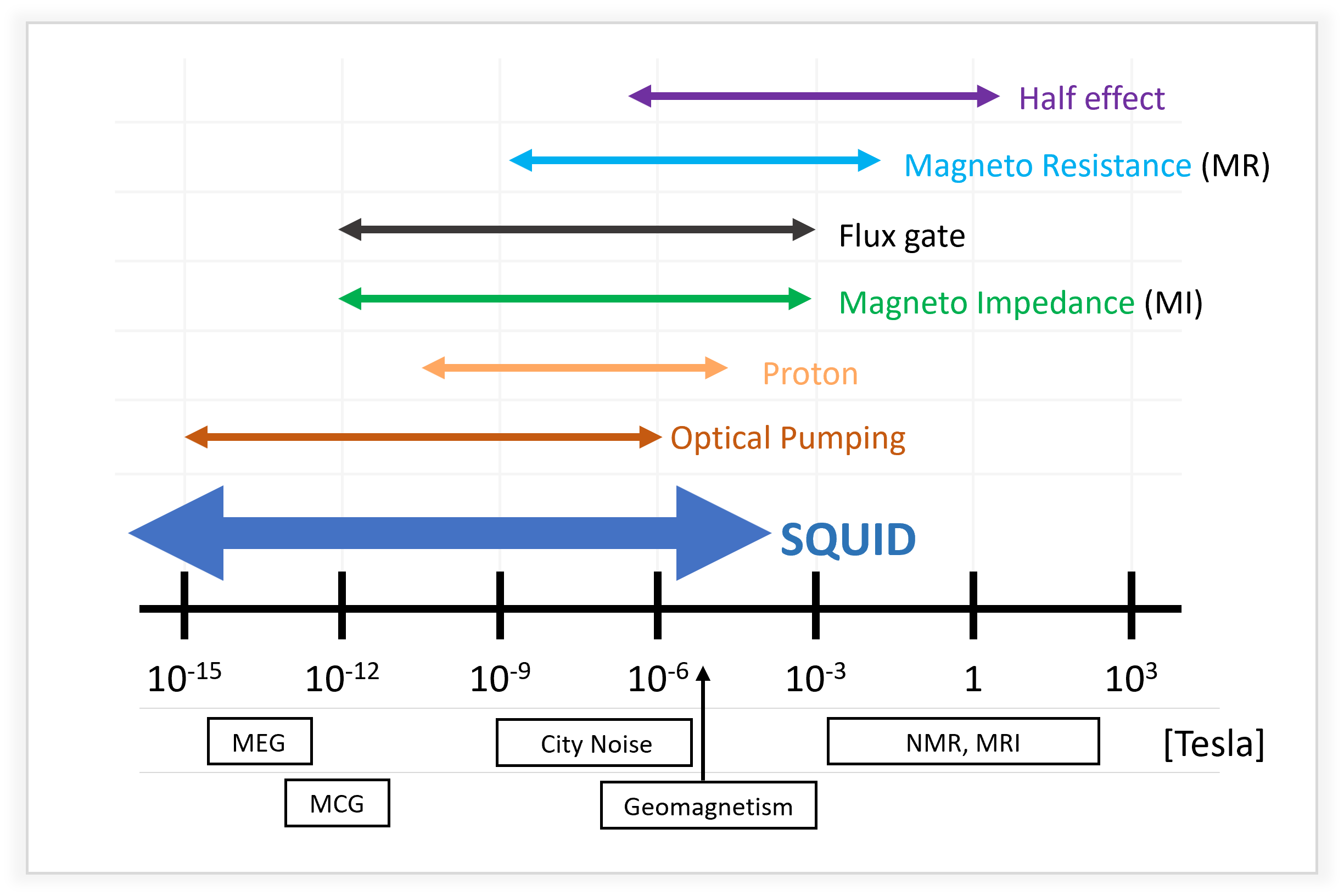

- Principle based on quantum physics.
- Vector sensor with ultimately high sensitivity to detect tiny signal such us MEG (Magnetoencephalography) level.
- Wide dynamic range even detectable fields up to near geomagnetism.
- Small size / lower power required.

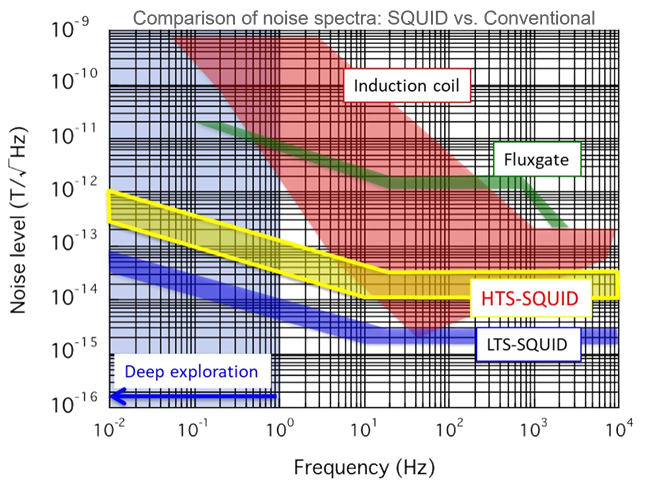

Lower field noise at lower signal frequencies
- SQUID possesses a great nature for “Unlock deep TEM exploration”
- Frequency independent sensitivity in wide frequency band (DC up to MHz). “Great for EM data processing & analysis”
- Liquid N2 cooling for HTS-SQUID instead of liquid He. “Low cost, available anywhere, field friendly”
- Only a few companies in the world can use SQUID technology for geophysical exploration.

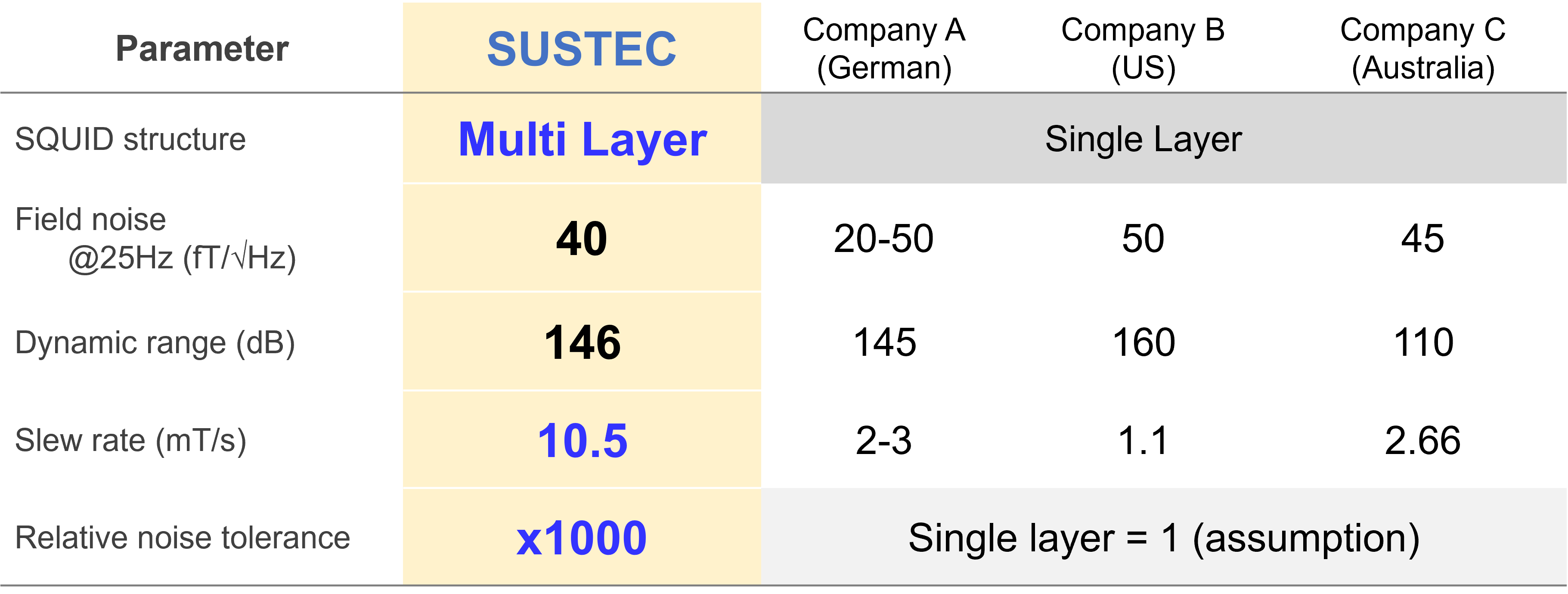

- x1000 better tolerance for external noise and x5 higher slew rate against competitors.
- Higher slew rate and noise tolerance enables more deeper / accurate geophysical exploration.
*Reference: Superconductor Science and Technology, 34, 033001 (2021), “Superconducting sensors and methods in geophysical applications”, R Stolz, M Schmelz, V Zakosarenko, C. Foley, K. Tanabe, X. Xie, and R. L. Fagaly
Proven SQUID Operation in Tough Environment
- Rainforest and steep mountains area of Southeast Asia.
- Rugged desert areas in the Middle East.
- Deep snowing condition...
- Shallow water offshore environment in Japan (Hokkaido).
